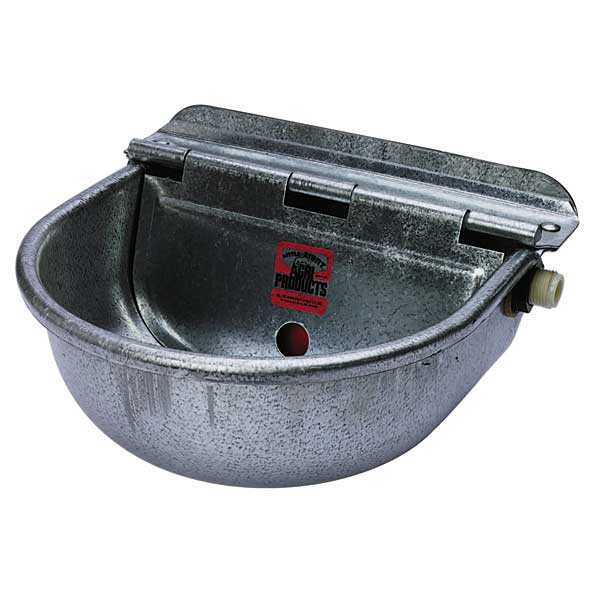

Little Giant Galvanized Automatic Waterer

Mounting Instructions: Note: The waterer is shipped with the float assembly installed on the right side of the waterer bowl. The float assembly can be installed on either side of the waterer to best suit your application. Carefully remove the square plastic plug and the mounting nut and fiber washer from the float assembly. Reinstall the float assembly on the left side and the square plastic plug on the right side of the waterer before proceeding. 1. Mount the waterer to a flat rigid surface like a stall, fence, or post with the mounting surface (back) of the waterer bowl as vertical/plum as possible. For additional protection against damage from animals, mount the waterer near an inside corner if possible. Note: The waterer must be properly mounted to a vertical surface. The waterer will not work properly laying on the ground. 2. Remove the float pin and float/arm assembly from the waterer to gain access to the mounting holes (see Figure 1). 3. Use the water bowl to measure and mark the mounting holes at the desired mounting location. 4. Drill a hole in each of the two (2) marked locations. a. If mounting the waterer with 3/8”lag screws, use a 1/4”dia. drill. b. If mounting the waterer with 3/8-16 through bolts, use a 13/32”dia. drill. 5. Install the waterer as shown (see Figure
